30KV 20000PF High Voltage Ceramic Capacitor

Place of Origin : CHINA

Brand Name : JK

Certification : ROHS,ISO 9001

Model Number : C-CT8G-30KV-203K

MOQ : 5000PCS

Price : Negotiable

Packaging Details : Bulk

Delivery Time : 3-7 days

Payment Terms : T/T & Paypal

Supply Ability : 500000000 Piece/Pieces per Month

Contact Now

◆Quick Details

low AC/DC series,low voltage,Electrically induced telescopic effect.Operating frequency:high frequency 20KHZ~1000KHZ.

Description

30KV high voltage ceramic disc capacitor is the indispensable electronic component for high pressure or the UHF instruments, machinery, X-ray machine, precision type instrument, medical equipment, aerospace, voltage regulator, electric power equipment, meters, home appliances, electrostatic spray equipment, military equipment, many other products and industrial applications.

◆Applications

This product is mainly used in peak value current and high repetition rates circuit, such as: high voltage times pressure, points voltage protection, decoupling circuit, laser inspired, switching circuit, welding equipment, AC current limiting, DC energy storage, high frequency coupling, communication, DC filtering and so on

Specification

Electrical Ratings

Part No.	MZC-CT8G-30KV-203K			Reference Standard
Test Condition				GB9600-88
Frequency: 1KHZ Temperature: 25℃				Color		White

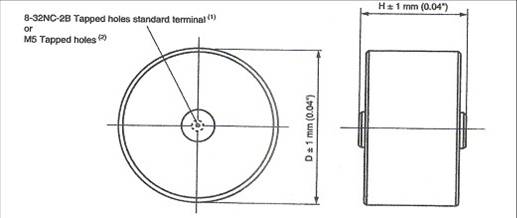

Capacitance Range		20000 PF	Outline Drawing
Capacitance Tolerance		+/- 10%
Dissipation Factor		≤0.2%
Rated Voltage		30KVDC
Test voltage		45 KVDC
Insulation Resistance		≥200000 (MΩ)
			D=60(MAX) H=42(MAX)
Temperature Characteristics		N4700 +30/-33%
			Temperature		-25℃~+85℃
Load life		≥10 years	Operating frequency		20KHZ~1000KHZ

Quality 30KV 20000PF High Voltage Ceramic Capacitor for sale

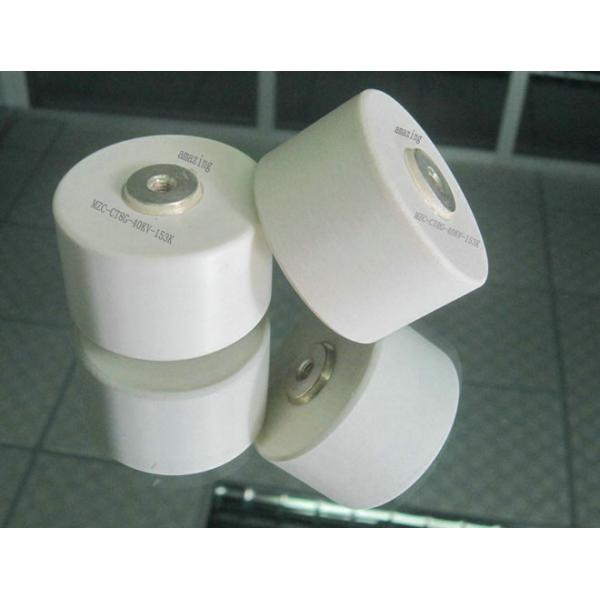

30KV 20000PF High Voltage Ceramic Capacitor Images
